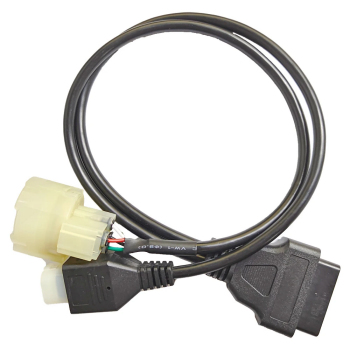

Adapter HONDA and SUZUKI 4+8 Pin - OBD-2
[240478]
19,65EUR*
inkl. MwSt.
zzgl. Versandkosten
Item in low quantities in stock.

OBD-2 adapter cable female OBD-2 socket to diagnostic connector for HONDA and SUZUKI brand motorcycles/boats
Ideal for carrying out vehicle diagnostics with suitable software and a simple KL interface.

This adapter cable alone is not enough! You still need an interface like our OBD serial RS232 KL diagnostic interface KL2321 or K²L901 OBD USB KKL diagnostic interface. If you still have a serial RS232 connection on your PC, we recommend the serial interface. Otherwise, use the USB interface without using an additional serial adapter.

OBD II                SUZUKI
Pin                   Pin
5  ------------------- 1
16 ------------------- 2
8  ------------------- 3
7  ------------------- 4

Please check whether the assignment of the signal lines are compatible with your plug of the control unit.

Adapter HONDA and SUZUKI 4+8 Pin - OBD-2
Adapter HONDA and SUZUKI 4+8 Pin - OBD-2
Adapter HONDA and SUZUKI 4+8 Pin - OBD-2
Select picture to enlarge, please.
Adapter HONDA and SUZUKI 4+8 Pin - OBD-2
