OBD-2 Connector orange transparency
[100141]
4,90EUR*
inkl. MwSt.
zzgl. Versandkosten
Item is in stock.

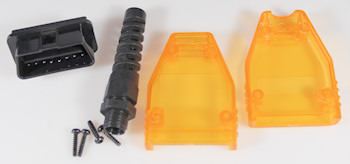

Fully equipped plug inclusive shells and break protection for the building of own diagnose cables.
Corresponding to nach SAE J1962 / ISO 15031-3 Norm with centre bar type A (passenger cars) and with hurrying ahead ground pins.

The pins are already soldered finished on a small plate. The most important 9 pins are led into the center, where a cable or a pin row can be soldered:

10 2 7 15 16 4+5 14 6

  • Housing bowls orange/yellow transparency
  • Huge housing (ca. 6 x 4,5 cm)
  • All 16 pins are included
  • Pins for soldering
  • Tension relief
  • Housing bowls for screwing (4 screws incl.)
  • Ideally for the self-'s building of diagnostic adapters
PinBeschreibung
2J1850 Bus+
4Fahrzeug Masse
5Signal Masse
6CAN High (J-2284)
7ISO 9141-2 K Ausgang
10J1850 Bus
14CAN Low (J-2284)
15ISO 9141-2 L Ausgang
16Batterie-Spannung +12V

OBD II topview jack
