Femal OBD-2 Cable to male Sub-D
[070074]
12,50EUR*
inkl. MwSt.
zzgl. Versandkosten
Item is in stock.

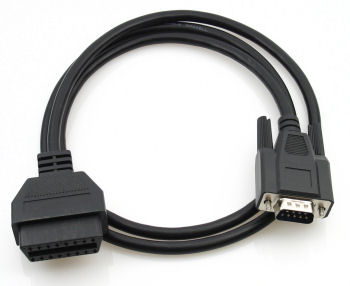

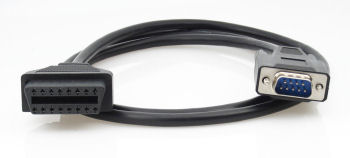

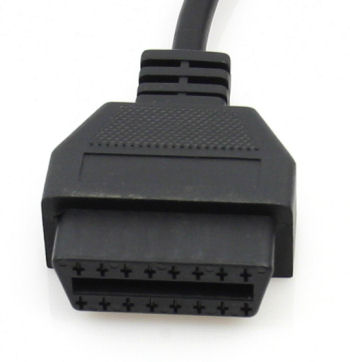

Female OBD-2 jack (type A for passenger cars) to 9-pole Sub-D plug (male)

Length: 1 m

Stable, industrially manufactured execution with molded plugs.

The cable is not suitable for the direct connection between vehicle and computer - an interface is needed.
This cable is not for connecting between car and most of interfaces. It's specially for Engineers.

Pinout:
Sub-DOBD IIDescription
15Signal ground
24Chassis ground
36CAN High
47ISO 9141-2, K-Line
514CAN Low
610J1850 Bus -
72J1850 Bus +
815ISO 9141-2, L-Line
916Battery voltage

Discounts
Number       Discount    Unitprice
from 50    4%    12,00EUR*
