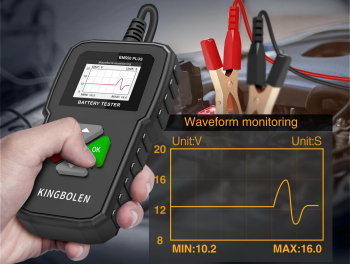

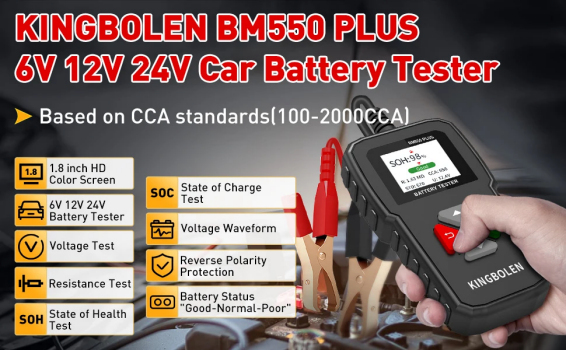

Automatic tester for starter batteries 6V, 12V, 24V

For checking the performance of starter batteries. The device determines the relevant characteristics of a battery and provides information on the color display as to whether the battery is still in good condition, needs to be charged, or needs to be replaced. Ideal for knowing how reliable the battery is before vacation or winter.

Provides information on:

• Internal resistance in mOhm
• Current state of charge in volts (Status of Charge, SOC)
• State of charge in percent
• Maximum possible (cold) cranking current (CCA/CA) in amperes
• Battery rating as a text message (Status of Health, SOH)

Simply connect the tester to the battery (installed in the vehicle or removed), configure the test settings, and the result is available in just a few seconds.
Each battery is marked (in addition to the nominal capacity in Ah) with the maximum possible starting current: CCA (cold cranking amps) (common specification in Germany)

Operating voltage: 5-32 V
Measuring range: 100-2000 A

Scope of delivery:

• Battery tester including terminal clamps
• Quick start guide (English)
